Tait

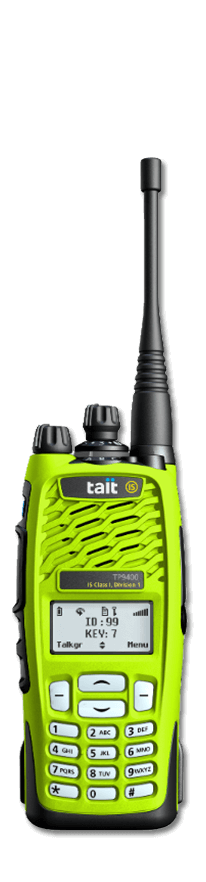

TP9468IS
The TP9468 Intrinsically Safe (IS) P25 portable radio is engineered to operate safely in hazardous environments, with the highest Class 1 Division 1 gas ratings in the market.
This enables faster safety assessment when responding to the unknown and allows use of Tait TP9468 IS radios in hazardous locations where other IS radio use may currently be limited.
Only available in the USA
Performance Characteristics
Frequency band:
VHF, UHF, 700/800 MHz
Frequency range:
VHF: 136-174 MHz
UHF: 400-470, 450-520 MHz
700/800: 762-776, 851-870 MHz
Power Output:
VHF: 1-5 W
UHF: 1-4 W
700/800: 1-3 W
Standard battery chemistry type:
Li-Ion
Battery life (based on a 5-5-90 duty cycle):
12 hours
Number of Channels/Groups/Zones:
1,000 channels/50 zones
Channel spacing:
12.5, 15, 20, 25, 30
Physical Characteristics
Dimensions H x W x D (with standard battery)
2.56 x 5.35 x 1.77 in (65 x 136 x 45 mm)
Weight (with standard battery)
11.46 oz (325 g)
Keypad / Keys
Display
User Environment
Operating temperature
-4° F to +140° F (-20° C to +60° C)
Mil spec
810D, E, F, 810G
IP Standards
IP68
Reliable operational efficiency
An integrated GPS for location services over conventional or trunked networks, along with Bluetooth® wireless technology for accessory connectivity, enhance safety and operational effectiveness. AES encryption capability, hidden microphone, and stealth emergency modes provide an additional layer of safety and security for communications on the move. Ruggedized for hazardous scenarios, the TP9400 includes IP67 sealing and shock absorbing impact-protected corners, exceeds MIL-STD-810G standards, and features a water-shedding grille that enhances voice clarity in wet conditions.
Key Benefits
- Greater interoperability with adherence to the P25 standards
- Efficient operations with encryption, voice and data, simulcast support and pre-set message status
- Multimode operation, including analog, Analog Simulcast over IP, P25 Phase 1, and P25 Phase 2, supports staged migration
- Security-focused fleet management with Over the Air Rekeying (OTAR) and key fill device support
- Enhanced worker safety with Man Down, Lone Worker, GPS, and more
- Color options available
