Tait
TP9400IS

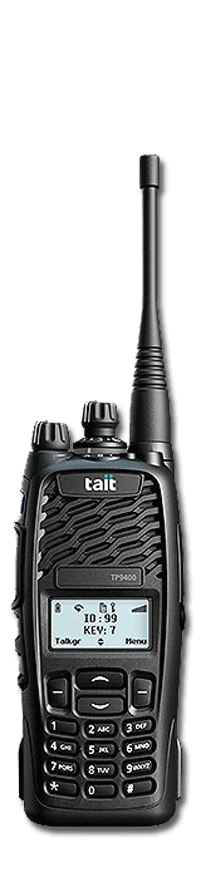

Tait TP9400 IS P25 Phase 2 portables are engineered for operation in hazardous environments, keeping first responders safe while they get the job done.
The TP9400 IS P25 portable radios’ IP67 rating protects up to one meter immersion for up to 30 minutes and a water-shedding grille supports voice clarity and volume in wet environments.
Instantly recognized in-field by the IS trademark blue color, TP9400 IS easily manages migration challenges with analog, P25 conventional and trunked and P25 Phase 2 interoperable capabilities.End-to-end encryption secures all communications and worker effectiveness is enhanced with voice and data capabilities, pre-set status message options and an internal GPS.
Performance Characteristics
Frequency band:
VHF, UHF, 700/800 MHz
Frequency range:
VHF: 136-174 MHz
UHF: 380-470 MHz
700/800: 762-776, 851-870 MHz
Power Output:
VHF: 1-5 W
UHF: 1-4 W
700/800: 1-2.5 W
Standard battery chemistry type:
Li-Ion
Battery life (based on a 5-5-90 duty cycle):
11.5 hours
Number of Channels/Groups/Zones:
1,000 channels/50 zones
Channel spacing:
12.5, 15, 20, 25, 30
Physical Characteristics
Dimensions H x W x D (with standard battery)
2.56 x 5.35 x 1.77 in (65 x 136 x 45 mm)
Weight (with standard battery)
15.16 oz (430 g)
Keypad / Keys
Display
User Environment
Operating temperature
-4° F to +140° F (-20° C to +60° C)
Mil spec
810D, E, F, 810G
IP Standards
IP67
Maximum safety, powerful performance in hazardous environments
Rated IP67, the TP9400 IS portable is engineered to withstand immersion in up to one meter of water for 30 minutes and includes a water-shedding grille to maintain voice clarity and volume in wet environments. The TP9400 eases migration challenges with analog, P25 Phase 1 conventional/trunked, and P25 Phase 2 interoperable capabilities.
Key Benefits
- Meets strict, global Intrinsically Safe standards
- Rated IP67 for rugged, reliability in hazardous environments
- End-to-end encryption for secure communications
- Improved safety with programmable emergency keys, Man Down, Lone Worker and integrated GPS
- Internationally recognized blue enclosure
- Adheres to P25 standards ensuring multi-vendor interoperability
