Tait
TP9400
The Tait TP9400 is a compact and feature-rich portable, delivering reliable mission-critical communications for First Responders in demanding environments.
Equipped with an internal GPS for location services, this P25 radio also features Bluetooth® wireless technology for accessory connectivity. Additional Man Down, Lone Worker and AES encryption ensure emergency responders’ status is always known and communications stay secure.

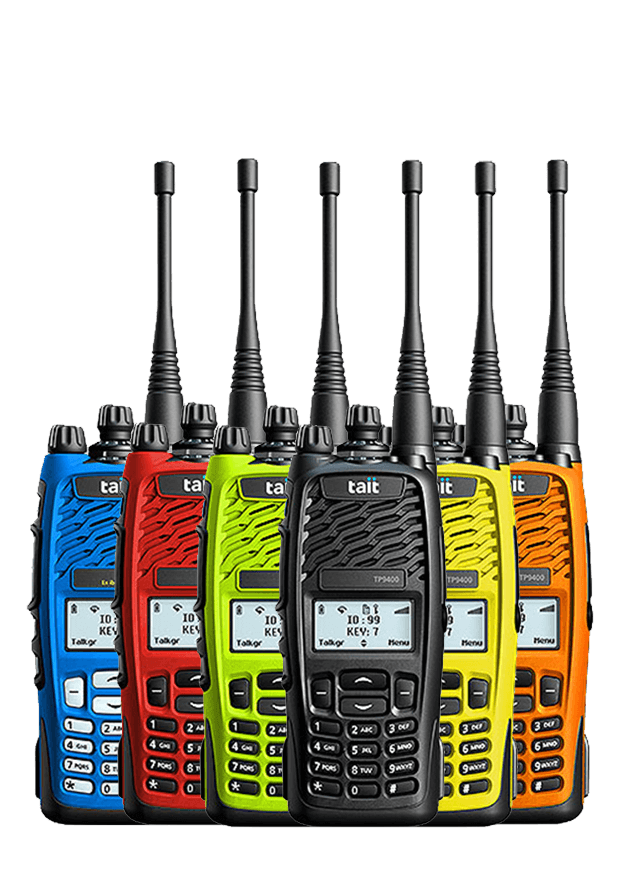

Available in the following colors: Black, Red, Yellow, Orange, Blue, and Lime Green
Performance Characteristics
Frequency band:
VHF, UHF, 700/800 MHz
Frequency range:
VHF: 136-174 MHz
UHF: 400-470, 450-520 MHz
700/800: 762-776, 851-870 MHz
Power Output:
VHF: 1-5 W
UHF: 1-4 W
700/800: 1-3 W
Standard battery chemistry type:
Li-Ion
Battery life (based on a 5-5-90 duty cycle):
12 hours
Number of Channels/Groups/Zones:
1,000 channels/50 zones
Channel spacing:
12.5, 15, 20, 25, 30
Physical Characteristics
Dimensions H x W x D (with standard battery)
2.56 x 5.35 x 1.77 in (65 x 136 x 45 mm)
Weight (with standard battery)
11.46 oz (325 g)
Keypad / Keys
Display
User Environment
Operating temperature
-4° F to +140° F (-20° C to +60° C)
Mil spec
810D, E, F, 810G
IP Standards
IP68
Reliable operational efficiency
An integrated GPS for location services over conventional or trunked networks, along with Bluetooth® wireless technology for accessory connectivity, enhance safety and operational effectiveness. AES encryption capability, hidden microphone, and stealth emergency modes provide an additional layer of safety and security for communications on the move. Ruggedized for hazardous scenarios, the TP9400 includes IP67 sealing and shock absorbing impact-protected corners, exceeds MIL-STD-810G standards, and features a water-shedding grille that enhances voice clarity in wet conditions.
Key Benefits
- Greater interoperability with adherence to the P25 standards
- Efficient operations with encryption, voice and data, simulcast support and pre-set message status
- Multimode operation, including analog, Analog Simulcast over IP, P25 Phase 1, and P25 Phase 2, supports staged migration
- Security-focused fleet management with Over the Air Rekeying (OTAR) and key fill device support
- Enhanced worker safety with Man Down, Lone Worker, GPS, and more
- Color options available
