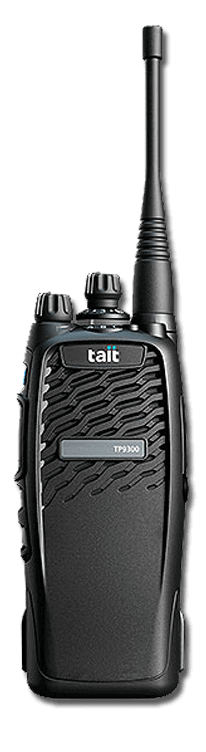

Tait
TP9300 IS
The Tait TP9300 IS delivers safe performance in hazardous conditions. Providing clear audio, this future-ready, multimode portable manages migration risk by supporting DMR Tier 2 and Tier 3, MPT 1327 and conventional analog FM.
Built to last, the TP9300 IS meets global Intrinsically Safe specifications and meets MIL-SPEC standards for the most rugged applications. This DMR Portable has an IP67 rating for water and dust protection and a water-shedding grille to ensure voice clarity and volume are maintained in wet environments.
Performance Characteristics
Frequency band:
VHF, UHF, 700/800 MHz
Frequency range:
VHF: 136-174 MHz
UHF: 380-470 MHz
700/800: 762-776, 850-870 MHz
Power Output:
VHF: 1-5 W
UHF: 1-4 W
700/800: 1-2.5 W
Standard battery chemistry type:
Li-Ion
Battery life (based on a 5-5-90 duty cycle):
11.5 hours
Number of Channels/Groups/Zones:
1,000–2,000 channels / 50-100 zones
Channel spacing:
12.5, 15, 20, 25, 30
Physical Characteristics
Dimensions H x W x D (with standard battery)
5.35 x 2.56 x 1.77 in (136 x 65 x 45 mm)
Weight (with IS battery)
15.17 oz (430 g)
Keypad / Keys
Display
User Environment
Operating temperature
-4° F to +140° F (-20° C to +60° C)
Mil spec
810D, E, F, 810G
IP Standards
IP67
Multimode Digital Radio Communications
The Tait TP9300 IS Portable delivers safe operation in hazardous conditions with technologies to prevent sparking, overheating or short circuits caused by dust and other contaminants. Built to last, this DMR Tier 2 and Tier 3 Radio, powered by Tait, meets MIL standards for the most rugged applications, and includes a protective water-shedding grille ensuring voice clarity in wet environments.
Key Benefits
- Superior technologies for safe operation in hazardous conditions
- Ruggedized to protect from sparking or overheating
- Water-shedding grille ensures clear communications in wet environments
- Reduces migration risk with multimode operations including DMR Tier 2 and Tier 3, MPT 1327 and conventional analog FM
- Promotes worker safety with GPS, man down alerts and location and status data messaging
