Tait
TP3300
The TP3 is packed with features, including voice annunciation, a color display, vibration alert, personalized label customization, and much more. With an array of options to suit different budgets and requirements, TP3 offers maximum flexibility and high quality in a lower cost portable.

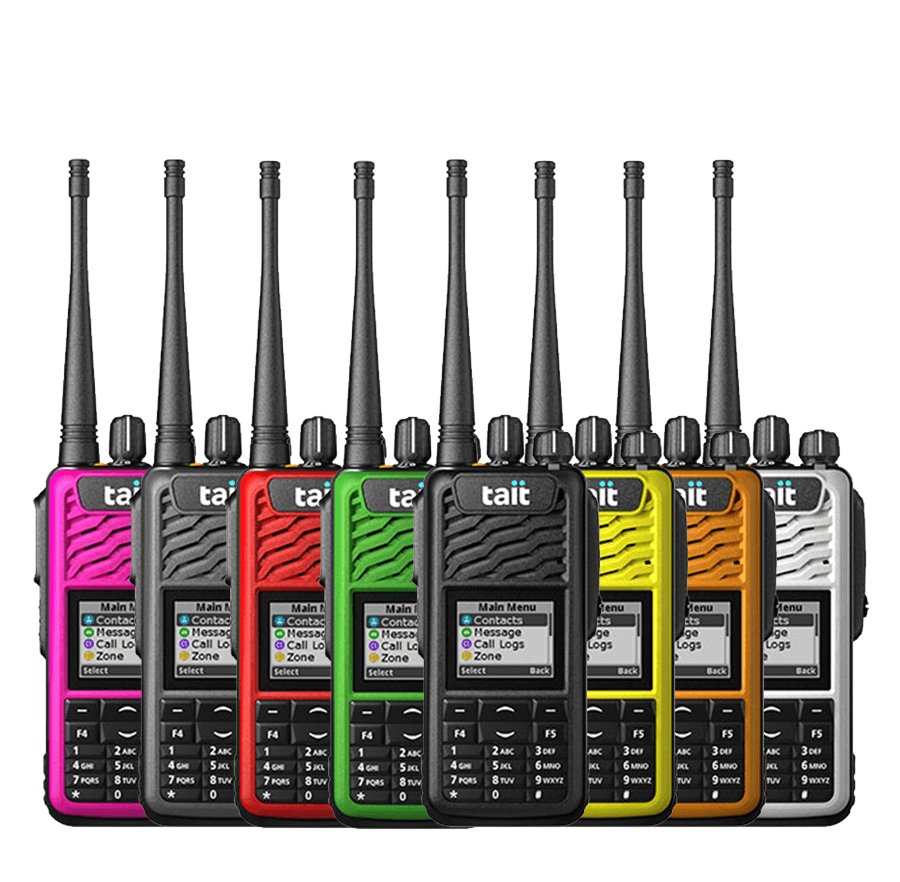

Available in the following colors: Green, Orange, Red, Yellow, Pink, White, Grey, and Black
Performance Characteristics
Frequency band:
VHF, UHF
Frequency range:
VHF: 136-174MHz,
UHF1: 400-480MHz,
UHF2: 450-520MHz
Power Output:
5W (VHF), 4W(UHF)
Standard battery chemistry type:
Li-Ion
Battery life (based on a 5-5-90 duty cycle):
Number of Channels/Groups/Zones:
2,000 Channels for 4-key and 16-key radios 32 Channels for 0-Key Radio
Channel spacing:
Physical Characteristics
Dimensions H x W x D (with standard battery)
5 x 2.2 * 1.3 in
Weight (with standard battery)
11.53oz (327g)
Keypad / Keys
16 Key, 4 Key, 0 Key
Display
160x128 pixel, 1.77" color display
User Environment
Operating temperature
-22°Fto 140°F,
Mil spec
810-G
IP Standards
IP-67
IP67 Dust/Waterproof
The TP3 is rated IP67 for dust and waterproof protection, making it capable of withstanding immersion in water up to 1m for up to 30 minutes.
Advanced worker safety
Increase the safety of your workforce with GPS, Man Down, Bluetooth, and Vibration Alert options, available on the TP3350. Dual slot direct mode and transmit interrupt improve channel efficiency and allow faster response in emergency call situations. Voice and data encryption is also available.
DMR Tier 2 and Analog
TP3 offers options for every pocket, with models supporting both Analog and DMR Tier 2.
Colored covers
A wide range of color options lets you assign colors to certain groups, enabling quick team and user identification. Colors can also be used for brand identity.
Keypad variants and color displays
The TP3 can be quickly and cost-effectively upgraded with a simple cover change. A no-key, no-display unit can instantly be enhanced with increased functionality by changing the cover to a 4 or 16-key, color display.
Customizable labeling
The TP3 provides dedicated space for die-cut labels. Labels can be completely customized, offering a high level of personalization for any need
