Tait
TM9400
Tait TM9400 mobiles are high-performing, flexible and robust radios, designed for intuitive operation in challenging environments around the world.
This P25-compliant mobile radio eases migration to more spectrally efficient communications with multiple modes of operation, including analog, analog simulcast IP, 12.5 kHz P25 Phase 1 FDMA conventional/trunked, P25 Phase 2 TDMA trunked and LSM (CQPSK) decode capability.
The TM9400 has a range of control heads, including a Handheld Control Head or a Graphical Control Head (single or dual). Each option is capable of local or remote operation. There are also multiple color options, to make it easier for workgroups to identify the right equipment.
- TM9455 Graphical Control Head

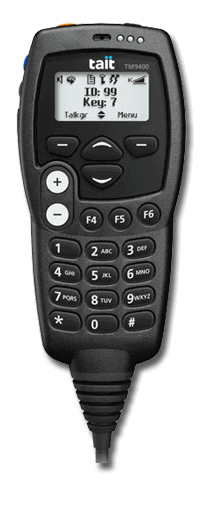

- TM9455 Handheld Control Head
- TM9456 Dual Band Single Head
Performance Characteristics
Frequency band:
VHF, UHF, 700/800 MHz
Frequency range:
VHF: 136-174 MHz
UHF: 400-470, 450-520 MHz
700/800: 762-870 MHz
Power Output:
VHF: 25W, 50W
UHF: 25W, 40W
700/800: 30/35W
Number of Channels/Groups/Zones:
1,000 channels/50 zones
Channel spacing:
Physical Characteristics
Dimensions D x W x H
Control Head: 1.38 in x 7.24 in x 2.8 in (35 mm x 184 mm x 71 mm)
Radio Body - 25 W: 6.9 in x 6.3 in x 2.1 in (175 mm x 160 mm x 52 mm)
Radio Body - 30/35/50 W: 7.7 in x 6.3 in x 2.1 in (195 mm x 160 mm x 52 mm)
Weight
Control Head: 0.73lb (0.33 kg)
Radio Body - 25 W: 2.6lb (1.2 kg)
Radio Body - 30/35/50 W: 3.1lb (1.4 kg)
User Environment
Operating temperature
-22°F to +140°F (-30°C to +60°C)
Mil spec
MIL-STD-810C, D, E, F and G
IP Standards
IP54
Efficient, reliable, secure public safety radio
The TM9400 integrates standard safety features including Lone Worker, a covert microphone, and stealth emergency modes for safe, effective communications in harsh environments. End-to-end encryption, a key-fill device, and Over the Air Rekeying (OTAR) enhance operational security. First responders can modify operation features through multiple configuration and programmable function keys.
Key Benefits
- Reduced migration risk with multiple modes of operation
- Adheres to P25 standards supporting multi-vendor interoperability
- Rugged design with IP54 rating and water-resistant control head
- AES encryption for secure communications
