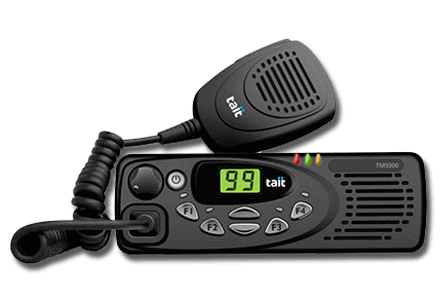

Tait
TM9300
Tait TM9300 mobiles are engineered to deliver critical communications using the Digital Mobile Radio (DMR) standards for workers in demanding occupations, including utilities, mining, transport and oil and gas industries.
With clear audio and GPS location capabilities, the TM9300 increases communications clarity while keeping operators tracked and connected. Ruggedized to withstand extreme conditions, the radios have a tough, die-cast metal chassis with an IP54-rated casing to protect from dust and water.
The TM9300 has a range of control heads, including a Handheld Control Head or a Graphical Control Head (single or dual). Each option is capable of local or remote operation. There are also multiple color options, to make it easier for workgroups to identify the right equipment.
- TM9355 Graphical Control Head
- TM9355 Handheld Control Head
- TM9315 Two Digit Display
- TM9356 Dual Band Single Head
Performance Characteristics
Frequency band:
VHF, UHF, 700/800, 900 MHz
Frequency range:
VHF: 136-174, 174-225 MHz
UHF: 320-380, 378-470, 400-470, 450-520 MHz
700/800: 757-870 MHz
900: 896-941 MHz
Power Output:
VHF: 25W, 50W
UHF: 25W, 40W
700/800: 35/30W
900: 30W
Number of Channels/Groups/Zones:
1,500 channels / 26 zones
Channel spacing:
6.25e, 12.5, 15, 20 ,25, 30kHz
Physical Characteristics
Dimensions H x W x D
Body
25 W: 2.1 x 6.3 x 6.9 in (52 x 160 x 175 mm)
30 W / 35 W / 50 W: 2.1 x 6.3 x 7.7 in (52 x 160 x 195 mm)
Graphical Control Head
2.8 x 7.24 x 1.38 in (71 x 184 x 35 mm)
Weight
Body: 25 W: 2.6 lb (1.2 kg), 30 W / 35 W / 50 W: 3.1 lb (1.4 kg)
Control head: 0.73 lb (0.33 kg)
Display
User Environment
Operating temperature
-22º to 140ºF (-30º to 60ºC)
Mil spec
810C, D, E, F and G
IP Standards
IP54
Rugged, multi-mode DMR for public safety and professional communicators
Clear digital audio quality, 56-bit DES encryption, and GPS location capabilities, improve worker communication and efficiency. The TM9300 is rated IP54 for its rugged enclosure design, engineered to withstand demanding environments. A range of models, accessories, frequencies and power options are available to meet various operational needs.
Key Benefits
- Supports analog FM, MPT 1327, DMR Tier 2 (conventional) and DMR Tier 3 (trunked) for ease of migration
- Rugged design for demanding environments with IP54 rating
- Increased efficiency with data communications and location services
- End-to-end encryption for secure communications
- Improved workforce safety with integrated Lone Worker and GPS capability
