Tait
TB9400

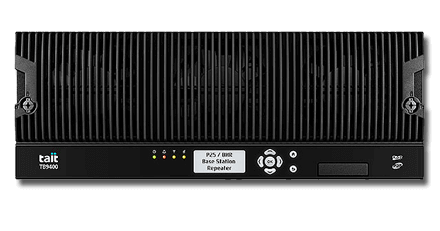

The Tait TB9400 Base Station, powered by Tait, is a reliable, scalable open-standards-based P25 migration solution. This interoperable base station/repeater has multimode functionality providing analog simulcast over IP, P25 Phase 1, and P25 Phase 2.
Performance Characteristics
Frequency band:
VHF, UHF, 700/800 MHz
Frequency range:
VHF: 136-174,MHz
UHF: 400-440, 440-480 MHz
700/800: 762-776 MHz, 850-870 MHz
Power Output:
Single: 50W, 100W
Dual: 50 W
Number of Channels/Groups/Zones:
1,000
Channel spacing:
12.5kHz
Physical Characteristics
Dimensions W x H x D
19 x 7 x 15.8 in (483 x 177 x 400 mm)
Weight
Single 50 W: 43.2 lb (19.6 kg)
Single 100 W: 46.5 lb (21.1 kg)
Dual 50 W: 57.7 lb (24.8 kg)
User Environment
Operating temperature
-22ºF to 140ºF (-30ºC to 60ºC)
Mil spec
MIL-STD-810C, D, E, F and G
Flexible, efficient P25 and analog networking>
With a modular design as well as remote management and monitoring options, the TB9400 is an efficient, cost-effective solution that can adapt and grow with an organization’s P25 radio system. The integrated software voter and simulcast controller reduces your need for additional hardware and saves rack space. Remote management and monitoring options include combined diagnostics and access level control, multiple user accounts, fault diagnosis, and detailed alarm monitoring and management.
Key Benefits
- Operation in VHF, UHF and 700/800 MHz frequency bands
- Ensure a smooth migration from Analog to Digital with multimode functionality
- Scalable, open-standard P25 migration solution ensures interoperability with other agencies
- Secure, remote management and monitoring options
- Designed and tested for resilience and reliability to mitigate network outages
