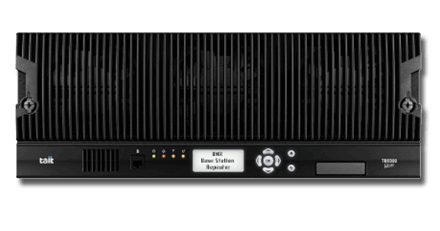

Tait
TB9300
The Tait TB9300 is an IP connected, digital base station for DMR Tier 2 (conventional) or Tier 3 (trunked) networks. Their functionality allows for flexible network designs and easy migration paths from analog networks to DMR. These spectrally efficient base stations provide a 6.25kHz equivalent operation using two TDMA channels in one 12.5kHz channel, giving you greater capacity now and providing a future path for expansion.
Performance Characteristics
Frequency band:
UHF, VHF, 700/800 MHz, 900 MHz
Frequency range:
VHF 136-156MHz, 148-174MHz, 174-193MHz, 216-225MHz
UHF 330-380MHz, 380-420MHz, 400-440MHz, 440-480MHz, 400-470MHz, 470-520MHz
700/800MHz Tx:762-870MHz,Rx:794-824MHz, Tx:757-758MHz,Rx:787-788MHz
900MHz Tx:927-941MHz,Rx:896-902MHz
Power Output:
upto 100W
Number of Channels/Groups/Zones:
Channel spacing:
Physical Characteristics
Dimensions H x W x D (with standard battery)
7x 19 x 15.8in (177x 483x 400)
Weight (with standard battery)
Single50W: 47.4lb (21.5kg) SingleRx only: 37.5lb (17.0kg)
Single100W: 50.3lb (22.8kg)
Dual 50W: 63.1lb (28.6kg) Dual Rx only: 43.2lb (19.6kg)
User Environment
Operating temperature
-22°Fto 140°F(-30°Cto 60°C)
Smooth Migration
Tait has the best migration stories around. The TB9300 operates in multiple modes, including Analog Conventional, MPT-1327, DMR Tier 2, and DMR Tier 3. You can install the base station to operate on your existing network today, and then upgrade with ease when ready
Receiver Performance
The TB9300 offers exceptional receiver performance and exceeds or matches all other DMR base stations on the market for sensitivity, selectivity and intermodulation performance. This means that the user gets extended talk-in (uplink) range as well as significantly increased resistance to interference for clearer, more consistent audio.
Operational efficiency
The TB9300 provides operational efficiencies through remote network management and IP connectivity capabilities, which includes alarm monitoring and reporting, inbuilt diagnostics, and remote software downloads. It also supports packet data over traffic channels for Workforce Management, Telemetry, SCADA and other applications.
Security-focused
The remote network management is utilized with built-in secure https web server and SNMPV3 support. The TB9300 also offers enhanced security through password protection and access level control on the web server. Multiple user accounts with varying access can be maintained, and audit and system logs can be retained.
Resilient, reliable communications
To give you confidence in your communications in even the most challenging environments, the TB9300 is rated for continuous full output power and ensures continuity of operation with smart AC/DC management. With support for up to two base station software releases, it gives you the ability to roll-back software updates. Like all Tait products, it's built Tait Tough and meets relevant MIL-STD-810G test methods.
Easy to Maintain
The modular design of the TB9300 allows cost-effective deployment, maintenance, and upgrades. It is software configurable, including feature upgrades through software licenses, and software upgrades can add new features and functionalities to ensure that your DMR solution is kept up to date with the ever-changing needs of your organization's environment.
