Tait

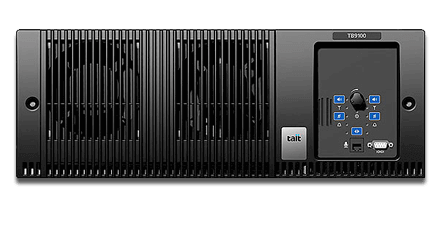

TB9100
Design of this Base Station, powered by Tait, includes industry-standard interfaces and modular expansion options for a cost-effective solution. The TB9100 is fully P25 compliant and can be configured as a repeater or as a base station in a digital P25, analog FM or mixed-mode radio network. IP connectivity delivers advanced capabilities for remote diagnostics, performance analysis and alarm and alert configuration.
Performance Characteristics
Frequency band:
VHF, UHF, 700/800 MHz
Frequency range:
VHF: 136-174MHz
UHF: 380-520MHz
700/800: 762-870MHz
Power Output:
Single: 5/50 W
Dual: 100 W
Number of Channels/Groups/Zones:
255
Channel spacing:
12.5kHz, 20kHz, 25kHz
Physical Characteristics
Dimensions H x W x D
Subrack (only): 7in x 19in x 15.2in (177.8mm x 482.6mm x 386mm)
Subrack with front panel: 7in x 19in x 16.1in (177.8mm x 482.6mm x 409mm)
Weight
Single 5/50W: 47.0lb (21.5kg)
Dual 100W: 50.2lb (22.8kg)
User Environment
Operating temperature
-22°F to 140°F (-30°C to 60°C)
Mil spec
MIL-STD-810C, D, E and F
Modular P25 Architecture with IP Connectivity
Engineered for dual-mode operation, the Tait TB9100 gives users a flexible migration path from analog to P25 digital communications. Operational efficiencies are also enhanced with intuitive software for fast creation of custom applications, system configuration and upgrades.
Key Benefits
- Ideal solution for conventional, trunked and simulcast mission-critical networks
- Intuitive software programming for fast customization, configuration and upgrades
- Flexible design adapts to growing user needs
- Advanced capacity and interoperability with adherence to P25 standards
- IP connectivity for enhanced remote management and monitoring capabilities
