Tait

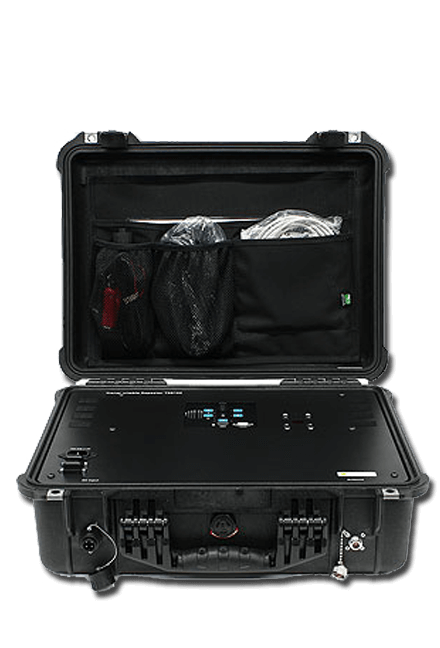

TB9100 Transportable Base Station/Repeater
The rugged P25 transportable base station/repeater is designed for mission-critical use in disasters, tactical missions and at crime scenes to ensure worker and community safety and the security of communications and tactical operations. Extend your current P25 wide area coverage or set up a dedicated communications network on-site in minutes with the Tait P25 transportable repeater.
Performance Characteristics
Frequency band:
VHF, UHF, 700/800 MHz
Frequency range:
VHF: 136–174MHz
UHF: 380–520MHz
700/800MHz: 762–870MHz
Power Output:
50 W
Number of Channels/Groups/Zones:
10
Channel spacing:
12.5kHz, 20kHz, 25kHz
Physical Characteristics
Dimensions H x W x D
7.6in x 15.4in x 20.3in (192mm x 392mm x 515mm)
Weight
<44lbs (<20kg)
User Environment
Operating temperature
-22°F to 140°F (-30°C to 60°C)
Mil spec
MIL-STD-810C, D, E and F
Intelligent and reliable
Powered by external battery or mains (18-30V), the transportable base station/repeater features smart AC/DC switching, ensuring continuity of service.
Flexibility
The transportable repeater operates in VHF, UHF and 700/800MHz bands. It also offers dual mode interoperability for seamless switching between analog and P25 digital, and is also available as analog FM TB8100.
High-performing and secure
The transportable repeater delivers all of the trusted features of the TB9100 base stations. It also supports remote monitoring via the built-in Task Manager, which allows you to administer the unit remotely, including configuring alerts and monitoring RF performance.
Tough and robust
The transportable repeater comes in a rugged, waterproof Pelican briefcase and a reinforced aluminium chassis, with available color options so that you can choose a color that best suits the application.
