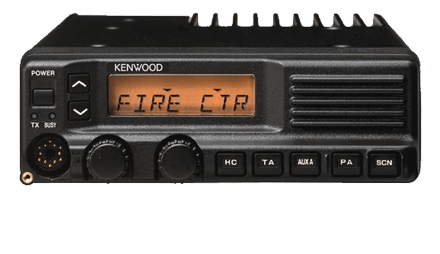

Kenwood TK-690/TK-790/TK-890

VHF/UHF Public Safety Mobile Radios

The 90-Series premium high specification heavy-duty mobiles meet the needs of public safety, public service, government, rail, transportation, utility and private industry sectors are available in dash mount, single head, dual head, dual band and dual head/dual band remote mount configurations. The dual head units are the perfect answer for fire, EMS, supervisor /command post vehicles requiring two full radio control points. The dual band and dual head/dual band allow seamless selection of channels on two different bands. All configurations offer a choice of 8 or 14-character high resolution backlit dot matrix LCD. The controls and customizable PF keys provide an intuitive user interface simplifying operation for all user types. The extra large capacity and dynamic channel group programming facilitate departmental, inter-agency interoperability, mutual aid and tactical channel organization. Encryption /ANI control permits basic to high level voice security and dispatch functions satisfying homeland security and confidentiality requirements. The DB-25 and 15-pin accessory connectors permit interface with data modems, headset/intercom systems, police motorcycle headset/PTT systems for vehicular installations or remote control termination panels for base/control station fixed installations.

Kenwood TK-690/TK-790/TK-890 Features

  • 45W & 110W (136-156, 148-174 MHz)
  • 40W (403-430, 450-490, 480-512 MHz)
  • 110W - 75W (450-480 MHz)
  • 110W (29.5 - 37.0, 35.0 - 43.0, 39.0-50.0 MHz)
  • 160 Channels / Conventional
  • Dual Priority Scan
  • Single / Multi Group Scan
  • QT / DQT
  • Operator Selectable Tone
  • Two-Tone Decode
  • DTMF Encode / Decode / Stun
  • Emergency Call Features
  • Companded Audio
  • Intercom
  • Public Address
  • Cloning
  • MIL-STD 810 c/D/E/F
  • Mil-Spec Noise-Cancel Mic (included)
  • Mil-Spec 12-Key DTMF Mic Option
  • FleetSync Encode
