Kenwood TK-2312 / TK-3312

Kenwood Communication Products & Solutions

VHF / UHF FM Portable Radio

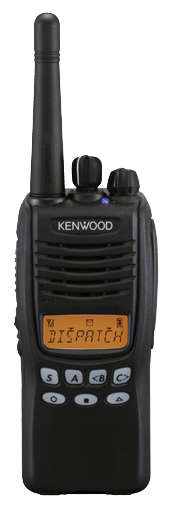

Kenwood TK-2312 / TK-3312

The new TK-2312/3312 is thin and compact yet packed with features for intuitive operation, impressive performance, and all-weather reliability. Front and side programmable function keys allow for customized convenience, and KENWOOD’s renowned audio clarity means the message gets through loud and clear

UHF Wide Band Coverage

Offering extensive frequency coverage – 70MHz for UHF – the TK-2312/3312 is ideal for a wide range of applications.

128 Channels / 128 Zones

The 128-channel, 128-zone capacity is ample for any current or future requirement in any radio system.

5W Output Power

Output is 5W for both VHF and UHF.

GPS Connectivity

Combined with the optional KMC-48GPS Speaker Mic, the TK-2312/3312 can function as a mobile station for KENWOOD’s AVL system.

Easy Operation

All front and side keys can be assigned individual functions, allowing this radio to be customized for easy one-touch operation suited to specific requirements. It is also possible to directly input a channel number using a key assigned with that number (12-key keypad models only). The 8-character, 13-segment backlit LCD with icons and RSSI display makes channel information and FleetSync® messaging easy to read, day or night.

4-Color LED Indicator

In addition to the red/orange/green LED indicators, a blue LED has been added for quick visual confirmation.

Programmable Voice Inversion Scrambler*

The built-in programmable voice inversion scrambler provides protection against casual eavesdropping.

*This function cannot be used in certain countries. Please contact your KENWOOD dealer or further information.

Signalling

  • QT / DQT / DTMF
  • FleetSync® PTT ID, SelCall
  • 2-tone (encode/decode)
  • Built-in MDC-1200 signaling

FleetSync® and MDC-1200 signaling can be independently selected for each zone. Switching between them is as simple as changing zones.

Emergency Function

For hazardous/hostile environments, side PF keys can be programmed for Emergency use to transmit an alert to a predetermined person or group using DTMF, FleetSync® or MDC-1200 signaling.

Robust & Water-Resistant

The tough TK-2312/3312 has passed the demanding IP54/55 tests, even with the optional speaker microphone KMC-45 attached (locking bracket required). It also meets or exceeds 11 MIL-STD 810 C/D/E/F/G environmental standards, including “blowing rain”.

Clear & Crisp Enhhanced Audio

As an experienced audio specialist, KENWOOD has decades of expertise that is reflected in every KENWOOD radio – from component selection and construction to optimization, evaluation and analysis. The resulting audio performance, specially engineered for transceivers, is undeniably clearer and crisper. Just listen to the difference.

Kenwood TK-2312 / TK-3312 Features

  • 5Watt VHF and UHF Models
  • Wide Band Coverage
  • 136-174MHz Model
  • 400-470MHz Model
  • 450-520MHz Model
  • 128 Channels / 128 Zones
  • GPS Connectivity (Combined with the optional KMC-48GPS Speaker Mic)
  • 9 PF KEYS Type and 6PF KEYS+12KEYPAD Type
  • 8Character, 13Segment Backlit LCD
  • 4Color LED Indicator (Red/Orange/Green/Blue)
  • Programmable Voice Inversion Scrambler
  • QT / DQT / DTMF Signaling
  • FleetSync® PTT ID, SelCall
  • 2-tone (encode/decode)
  • Built-in MDC-1200 Signaling
  • Emergency Function
  • IP54/55 Dust & Water Resistant
  • MIL-STD 810 C/D/E/F/G environmental standards, including "blowing rain"
  • Clear & Crisp, Enhanced Audio
  • Radio stun
  • Priority scan
  • Channel / Zone delete & add
  • Compander / VOX /Scrambler setting per channel
  • VOX Ready
  • Self-programming mode
  • Compatible with TK-2212/3212 batteries

Additional Features

  • Radio stun
  • Priority scan
  • Channel / Zone delete & add
  • Key lock
  • Compander / VOX /Scrambler setting per channel
  • VOX
  • T.O.T
  • Busy channel lockout
  • Operator-selectable tone
  • Password protection
  • Wireless clone
  • Self-programming mode
  • TaIk around
  • Compatible with TK-2212/3212 batteries
