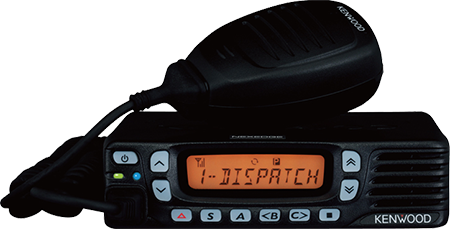

NEXEDGE® 800 MHz Digital & FM Mobile Two-Way Radio
Kenwood NX-920G Features
- 15W (806-870 MHz) RF Power Output
- 260 CH-GID / 128 Zones
- 10 Character Alphanumeric Aliases
- Backlit LCD & Keys
- Function / Status LCD Icons
- Transmit / Busy / Call Alert / Warn LED
- Blue Function / Status LED
- On / Off Power Control
- 4 Up / Down Selectors
- 6 Front PF Keys
- Emergency / AUX Key
- 4W Speaker Audio
- Zone / CH Number Voice Announcement
- DB-15 Accessory Connector
- 6 Programmable AUX I / Os
- KPG-141D Windows® FPU
- Flash Firmware Upgrading
- MIL-STD-810 C/D/E/F/G
- IP54 Water & Dust Intrusion
- PC Serial Interface
- SDM Manual Input*1
- Transparent Data Mode*1
- Built-in GPS Receiver Model: NX-920GG
- Available (Optional KRA-40G GPS Active
- Antenna required for GPS functions)
Digital Features
- NXDN® Digital Air Interface
- AMBE+2™ VOCODER
- 6.25 & 12.5 kHz Channels
- Over-the-Air Alias
- Over-the-Air Programming*2
- Paging Call
- Emergency Call
- All Group Call
- Status Messaging*1
- Remote Stun / Kill*1
- Remote Check*1
- Short & Long Data Messages*1
- GPS Location with Voice*1
- NXDN® Scrambler Included
Digital Conventional Mode
- 64 Radio Access Numbers (RAN)
- Individual & Group Selective Call
- Mixed FM / Digital Operation
- Conventional IP Networks
- Site Roaming
Digital Trunking Mode
- Individual Private Call
- Group Call & Broadcast Call
- Telephone Interconnect*3
- Transmission Trunked Mode*3
- Message Trunked Mode*3
- Call Queuing with Priority*3
- Late Entry (UID & GID)*3
- 4 Priority Monitor ID’s*3
- Remote Group Add*1
- Failsoft Mode
Multi-Site IP Network Compatible
- 60,000 GIDs / UIDs
- Wide Area Group Call
- Auto Roaming Registration
- Group Registration
Multi-System Compatible
- 8 Trunked Networks*4
- UID Lists for Each Network
Scan
- Single Zone / Multi-Zone / List Scan
- Single Priority Scan (Conventional)
FM Modes-General
- 25 & 12.5 kHz Channels
- NPSPAC Channels
- Conventional & LTR® Zones
- FleetSync® / II, MDC-1200, DTMF
- QT / DQT (Conventional Zones Only)
- Voice Inversion Scrambler (16 Codes)
FleetSync / II (FM)
- PTT ID ANI / Caller ID
- Selective / Group Call
- Emergency, Status & Test Messages*1
MDC-1200
- PTT ID ANI / Caller ID*3
- Emergency, Radio Check & Inhibit
- Requires NX subscriber unit PC Serial Interface compatible software application (e.g KENWOOD AVL & Dispatch Messaging software) or hardware (e.g. console).
- Requires KENWOOD OTAP Management software.
- These trunked features are primarily for system programming and operational dependent. Priority Monitor also requires NX subscriber settings.
- Up to 8 different Trunked Networks can be configured per radio (each in a zone).
