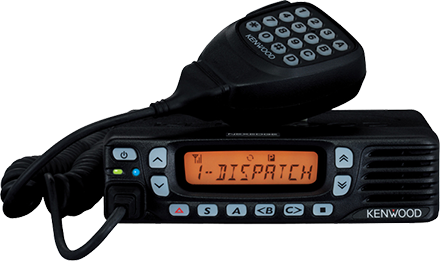

Kenwood NX-720H / NX-820H

NEXEDGE VHF Digital & FM Mobile Radio

Kenwood NX-720H/NX-820H Features

• Frequency Range
  • VHF: 136-174 MHz (NX-720(G) / 720H(G))
  • UHF: 450-520 MHz, 400-470 MHz, 350-400 MHz (NX-820(G) / 820H(G))
  • 800 MHz: RX: 851-870 MHz, TX: 806-825 / 851-870 MHz (NX-920(G))
• RF Output (Operation guaranteed for 1-5 W)･
  • VHF:　5-25 W (NX-720(G) for Europe)

    • 5-30 W (NX-720(G))

    • 5-30-50 W (NX-720H(G))

  • UHF:　5-25 W (NX-820(G) for Europe)

    • 5-30 W (NX-820(G))

    • 5-30-45 W (NX-820H(G))

  • ･800 MHz: 5-15 W (NX-920(G))

• 260 Channel / Group ID with 128 Zones

• 6 Front PF keys & 4 Up / Down Selectors

• Emergency / AUX Key

• 10 Character Alphanumeric Aliases Display

• 4 W Speaker Audio

• Single Priority Scan (Conventional)

• DB-15 Accessory Connector

• Flash Firmware Upgrading

• MIL-Spec Standard Mic

• MIL-Spec 12-Key DTMF Mic Option Available

• MIL-STD-810 C / D / E / F / G

• MIL-STD "Driven-Rain"

• IP54 Water & Dust Intrusion

• Built in GPS Receiver

• (only "G" model. Optional GPS Active Antenna KRA-40G available)

For Digital

• NXDN® Digital Air Interface

• NXDN® Scrambler Included

• AMBE+2™ VOCODER

• 6.25 & 12.5 kHz Channels

• Over-the-Air Alias

• Over-the-Air Programming

• Digital Conventional Mode

• Digital Trunking Mode

• Mixed FM / Digital Operation (Conventional)

• Multi-Site IP Network Compatible

• Conventional IP Network Compatible

• Telephone Interconnect (Trunking)

For Analog

• 25, 20*1 & 12.5 kHz Channels

• FleetSync® / II, MDC-1200

• QT / DQT / DTMF

• 2-tone / 5-tone*1 Encode / Decode

• Voice Inversion Scrambler　(16codes）

MDC-1200

• PTT ID ANI / Caller ID

• Emergency, Radio Check & Inhibit

• Emergency Status & Test Messages

• Radio Check

• Radio Inhibit
