Kenwood NX-220/NX-320

Kenwood Communication Products & Solutions

NEXEDGE VHF/UHF Digital & Analog Portable Two-Way Radios

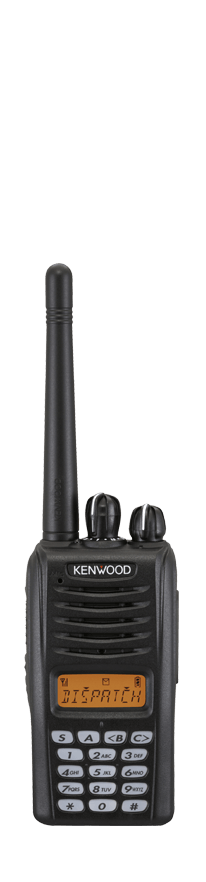

Kenwood NX-220/NX-320

NX-220/320 VHF and UHF 5 W radios deliver a full featured digital portable radio solution to enterprise, local government and SMR subscribers. The latest NEXEDGE® portables boast a newly designed ultra-compact platform with all of the high performance RF specifications and MILSTD 810 & IP54/55 ruggedness of Kenwood's flagship NEXEDGE® models. These new models come in three user interface configurations, including the first NEXEDGE® non-display model for users that need a limited number of channels or trunked talk groups. True to NEXEDGE® multi-system migration-ready tradition - analog, NXDN® conventional, and NXDN® trunking are included in all models and include the latest V2.5 enhancements such as OTAP over-the-air programming and ground-breaking NEXEDGE® enhanced audio refinements

NEXEDGE® was designed to provide advanced communication solutions that meet the needs of private enterprise and public sectors today and in the future. NEXEDGE™ includes features such as FM Analog @ 25 and 12.5 kHz channels, NXDN® digital @ 12.5 and 6.25 kHz channels, compliance with current frequency assignments, and NEXEDGE™ will easily convert to very narrow bandwidths in the future.

Kenwood NX-220/NX-320 Features

  • 5W (136-174 MHz)
  • 5W (400-470, 450-520 MHz)
  • 260 CH-GID / 128 Zones (LCD Models)
  • 64 CH-GID / 4 Zones (Non Display)
  • Single Zone / Multi-Zone / List Scan
  • Single Priority Scan (Conventional)
  • 12-Key Keypad Models
  • 8 Character Alphanumeric Aliases
  • Backlit LCD & Keys
  • 16th-Position Selector Stop (see notes)
  • 4 Front/3 Side PF Keys (Emergency/AUX)
  • Built-in Motion Sensor
  • 500 mW Speaker Audio
  • Zone / Ch# Voice Announcement
  • MIL-STD-810 C/D/E/F/G
  • IP54/55 Water & Dust Intrusion
  • 12.5 kHz Analog Channels
  • 6.25 & 12.5 kHz NXDN® Channels
  • Analog Conventional & LTR® Zones
  • NXDN® Conventional & Conventional IP
  • NXDN® Trunking & Multi-Site Networks
  • NXDN® Scrambler
  • NEXEDGE® OTAP Included
  • FleetSync®/II, MDC-1200, DTMF, QT/DQT & Two-Tone
  • Voice Inversion Scrambler (16 Codes)
