ICOM
V86-U86
2M with Powerful Audio

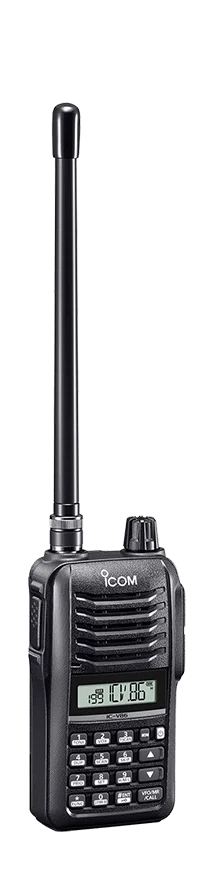

The IC-V86 gives you more audio, more RF power, more coverage, and more battery capacity in a compact, MIL-STD portable. With 1.5W of receive audio power and a new chassis design, the IC-V86 enables users to hear incoming signals in loud, noisy environments. The IC-V86 expands users' radios coverage with 7W of RF output power, and the new 2250mAh Li-ion battery pack provides longer operational capabilities.
User Environment
Operating temperature
–4 °F to +140 °F
Mil spec
MIL-810 G
IP Standards
IP54 (Dust-protection, water resistance)
Physical Characteristics
Dimensions W x H x D (with standard battery)
2.3 × 4.4 × 1.2 in
Weight (with standard battery)
IC-V86: 10.6 oz
IC-U86: 10.2 oz
Keypad / Keys
Fell Keypad
Display
Performance Characteristics
Frequency band:
IC-V86: TX: 144–148 MHz; RX: 136–174 MHz
IC-U86: TX: 430–450 MHz; RX: 400–472 MHz
Power Output:
IC-V86: 7.0W
IC-U86: 5.5W
Standard battery chemistry type:
Li-ion
Battery life (based on a 5-5-90 duty cycle):
19 hours
7 W Output Power and 1500 mW Audio
* Wide open space. Approximate, comparing the IC-V86 with the IC-V80. Communication range may differ depending on operating environment or weather conditions, etc. 7 W output power is only for the IC-V86.
1500 mW Powerful Audio and 1.5 Times* Higher Sound Pressure
* Approximate, comparing the IC-V86 with the IC-V80.
Optional 1500 mW Speaker-Microphone, HM-222HLWP
The combination of the optional HM-222HLWP and the IC-V86/U86 also provides 1500 mW (typ.) loud audio from the attached speaker-microphone.
Dust-Protection, Water Resistance and a Tough Body
(IP54 and MIL-STD 810G)
19 hours* of Long Lasting Battery Life
* EX Hi power with BP-298. TX : RX : standby = 5 : 5 : 90 (3 sec. : 3 sec. : 54 sec. ) (The Power Save function is set to "P–S.16")
No PC Programming Necessary, Settings Changeable from the Radio*
* PC programming is also available.
Durable BNC Type Antenna Connector
Made in Japan Quality and Reliability
Other Features
- Audio volume/VFO mode/Memory channel mode can be changed with the rotary knob
- Supplied BC-240, battery charger with a charging control function that prolongs the life of the battery
- Integrated VOX function
- 200 memory channels, 1 Call channel and 6 scan edges
- Built-in CTCSS and DTCS encoder/decoder
- Priority, program, memory, skip and tone scanning
